Architecture and Concepts

Project overview and doc navigation start from the Fluxon documentation home.

This page explains the core concepts and config fields that appear throughout the rest of the docs.

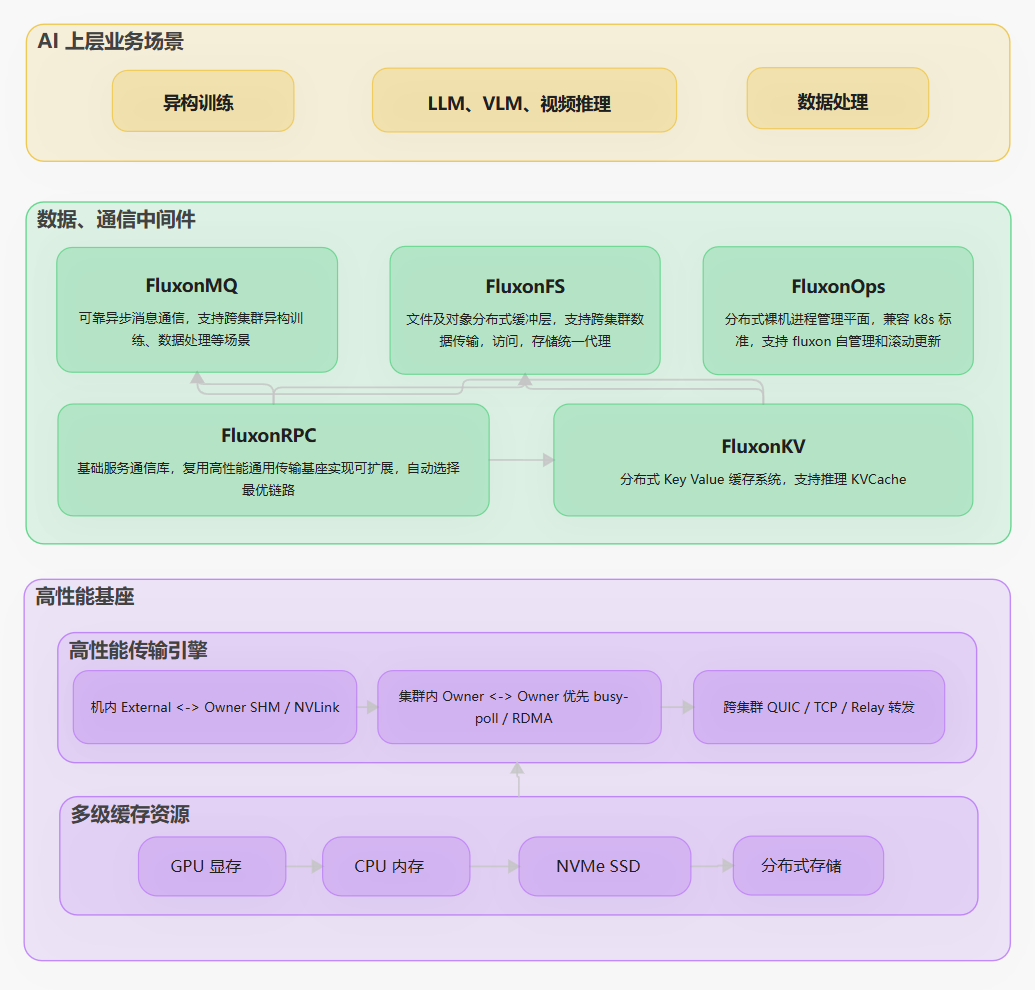

System Overview

• Control plane / metadata: etcd + Master for members, leases, routing, and connection-state metadata
• Data plane: shared memory + transfer engine for same-host reuse and cross-node data transfer
• KV: base read/write and RPC capability; Owner Client contributes the memory pool and External Client attaches in zero-contribution mode
• MQ: queue semantics built on top of KV and reusing the same service plane and shared-memory pool
• FluxonFS: remote file access built on top of KV; access control is persisted through fluxon_fs.master_panel.access_db_path, and transfer-state persistence uses fluxon_fs.master_panel.transfer_state_store
• FluxonOps: deployment and operations control plane built on KV

Distributed Deployment View

Control plane:

• Fluxon KV Master: cluster management, routing, coordination
• etcd: metadata store for member state, MQ state, offsets, and connection data
• Prometheus / GreptimeDB: metrics collection and storage for the monitoring panel

Per machine:

• Owner Client: contributes local data-plane resources and shared memory
• External Client: attaches to the local Owner Client shared pool and exposes access to business processes

Cross-machine transport:

• High Performance P2P: owners exchange data over RDMA / DPDK / SPDK / WebSocket / TCP / QUIC with busy-polling-first behavior and cross-cluster relay

Roles

Role	Responsibility
Master (master)	Control-plane entrypoint: membership, routing, leases, monitoring broadcast
Owner Client (owner_client)	Data-plane resource provider: contributes the shared-memory pool
External Client (external_client)	User-facing access point: attaches to a local Owner Client pool without contributing memory

Core Config Fields

cluster_name

• Logical cluster name
• Separates metadata keyspaces across clusters
• Must match on every component in one cluster

instance_key

• Unique process identifier
• Used for registration, RPC addressing, logs, and monitoring
• Must be unique inside one cluster_name

node_id / member_id

• Target locator fields in APIs
• Usually equal to instance_key

etcd_endpoints

• List of etcd addresses
• Some components need http://..., others accept host:port
• MQ and panel features depend on etcd reachability

prometheus_base_url

• Metrics source queried by the panel
• The panel only reads; it does not scrape by itself

share_mem_path

• Shared bundle root. Runtime appends cluster_name, and that cluster-scoped directory holds mmap.file, shared.json, and peer metadata.

log_dir

• Master-local log authority

contribute_to_cluster_pool_size

• Memory contribution config
• Non-zero for Owner Clients, omitted or zero for External Clients

MQ Concepts

unique_key and chan_id

• unique_key is the stable logical channel name
• chan_id is the bound existing channel instance id

See User - 4 - MQ Interface for details.
